Transformer Testing & Inspection
Transformer testing and pre-shipment inspection based on the approved rating, test plan, drawings, accessories, documentation, and release conditions.
Inspection confirms more than appearance. Product identity, nameplate, dimensions, accessories, workmanship, electrical test records, protection and control functions, document status, loose parts, preservation, packing, and outstanding actions must be checked against the order.
Capability and project scope
Routine tests and agreed additional tests verify electrical performance against the approved specification.

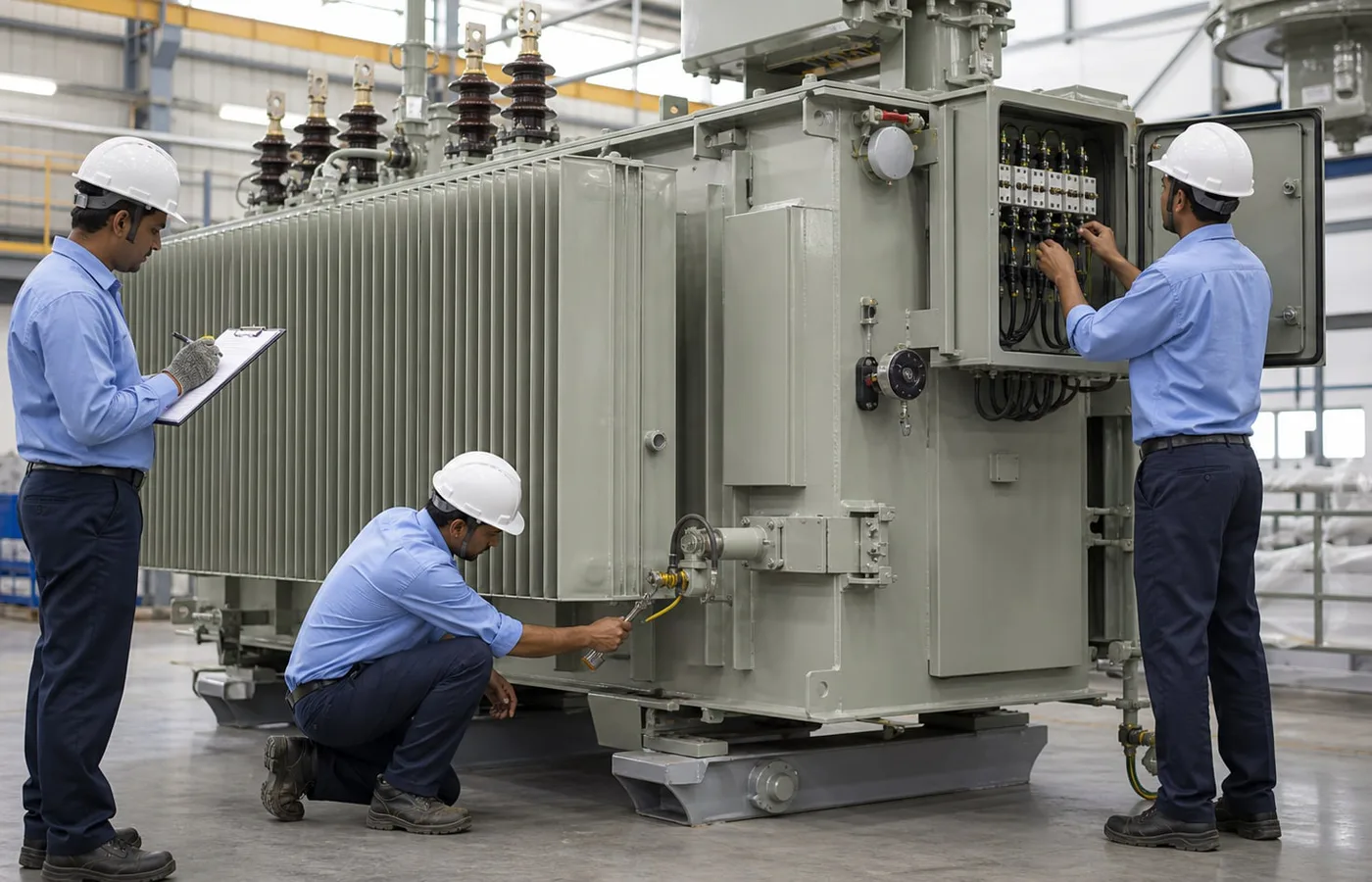

Visual and dimensional inspection confirms construction, interfaces, accessories, labels, finish, and workmanship.
Release inspection closes documents, open actions, preservation, loose parts, packing, and shipment readiness.
Products Covered by Transformer Testing & Inspection
This capability covers the following core product families. Engineering, production, testing, and documentation follow the confirmed order specification.
How the work is controlled
Define test items, acceptance criteria, witness and hold points, records, and responsibilities before production completion.
Match order number, model, rating, serial identification, nameplate, drawings, components, and accessories.
Review measured values, instrument status, control logic, alarms, trips, interlocks, and agreed simulations.
Close nonconformities and verify documents, preservation, packing, marks, loose parts, and loading plan.
Project inputs and acceptance basis
| Approved basis | Purchase order, specification, data sheet, drawings, deviations, component schedule, and nameplate. |
|---|---|
| Test basis | Applicable standard, routine and additional tests, guaranteed values, tolerances, witness requirements, and report form. |
| Inspection basis | Dimensions, finish, accessories, wiring, labels, documentation, spare parts, tools, and packing checklist. |
| Release authority | Who witnesses, who accepts deviations, required signatures, report circulation, and release conditions. |
Available project records
Technical questions: Transformer Testing & Inspection
Which products and projects are covered by Transformer Testing & Inspection?

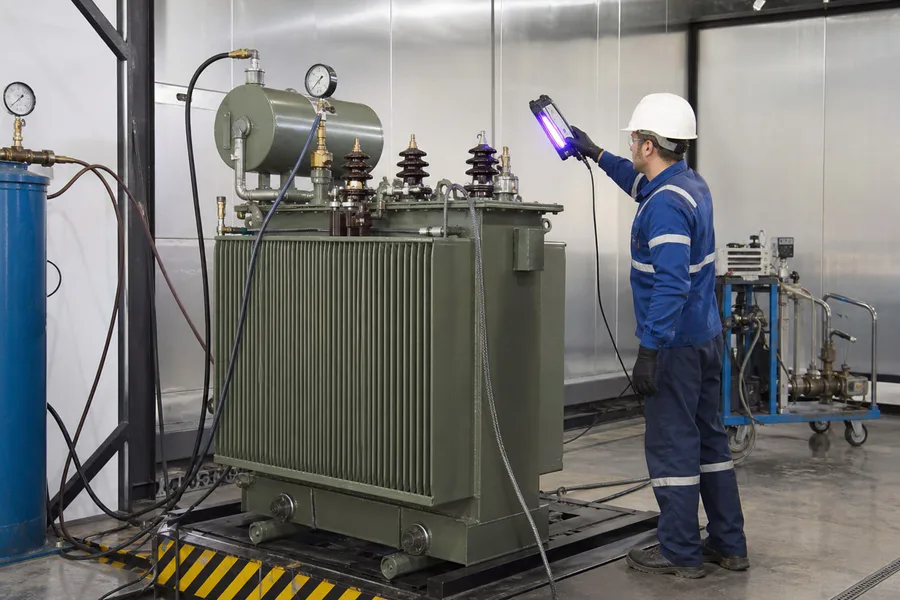

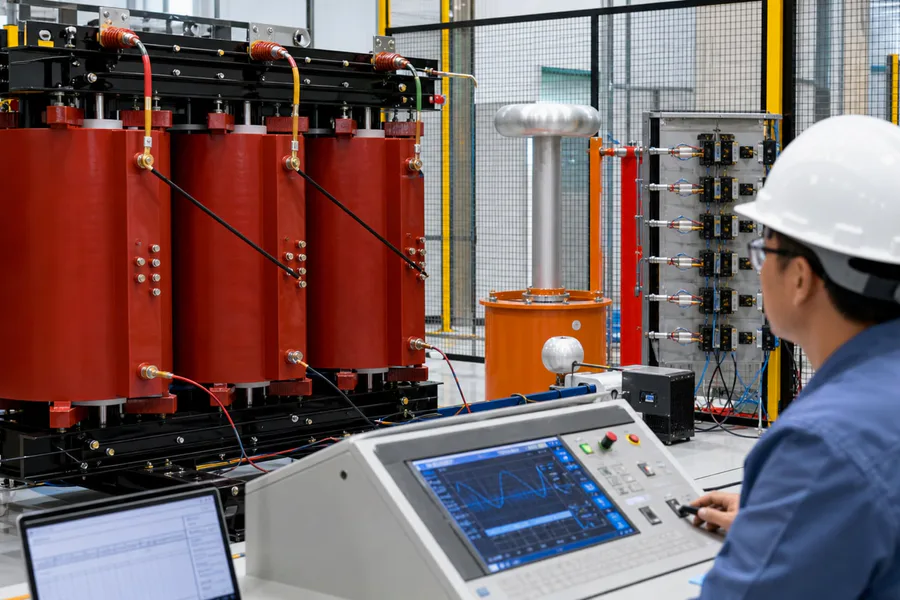

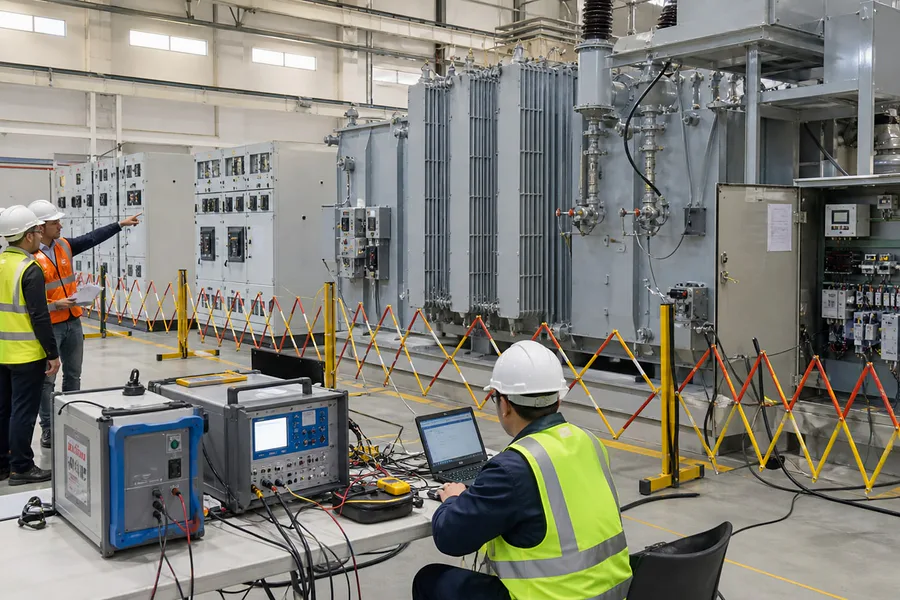

It can support oil immersed transformers, dry type transformers, compact substations, switchgear, or coordinated distribution packages; the actual scope follows the product and order.
What project information is required for Transformer Testing & Inspection?
Purchase order, specification, data sheet, drawings, deviations, component schedule, and nameplate.
What records can be produced during the project?
Signed inspection and test plan, Routine and additional test records, FAT or inspection checklist, Nonconformity closure record, Nameplate and accessory verification, Packing and release photographs
Can a factory visit, FAT, or third-party inspection be arranged?
Yes. The project stage, product readiness, inspection scope, witness party, notification period, and release conditions should be agreed in advance.
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
