Transformer & Compact Substation RFQ
Share compact substation layout, transformer capacity, MV/LV scheme, enclosure, and site requirements. A compact substation enquiry is not a single-transformer enquiry. It is an MV-transformer-LV package scope where single-line diagram, transformer rating, MV scheme, LV feeders, enclosure, protection and metering, cable entry, foundation, ventilation, and transport split must be confirmed together.
Transformer & Compact Substation RFQ transformer enquiry
A useful transformer quotation starts with rated data, site conditions, applicable standards, certification needs, quantity, destination, and delivery boundary.

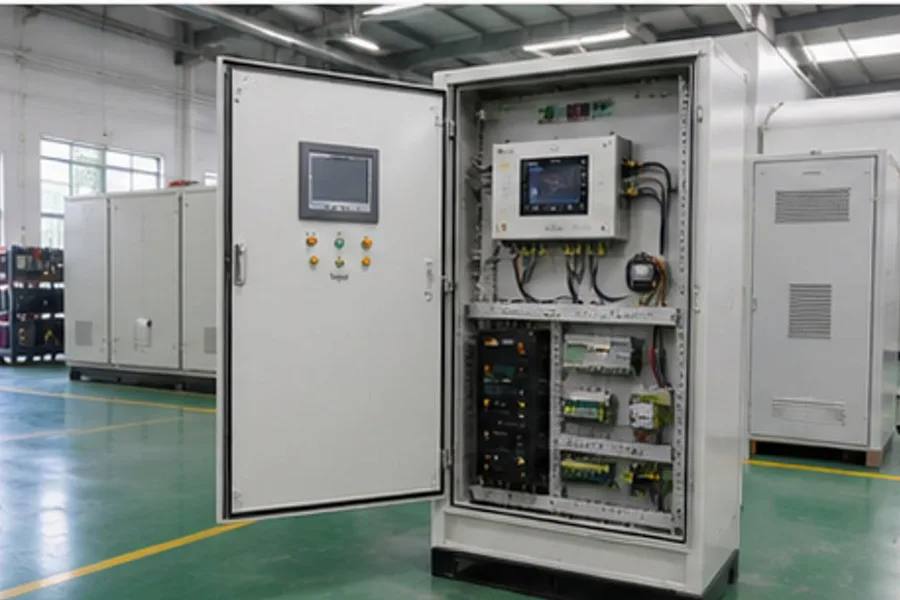

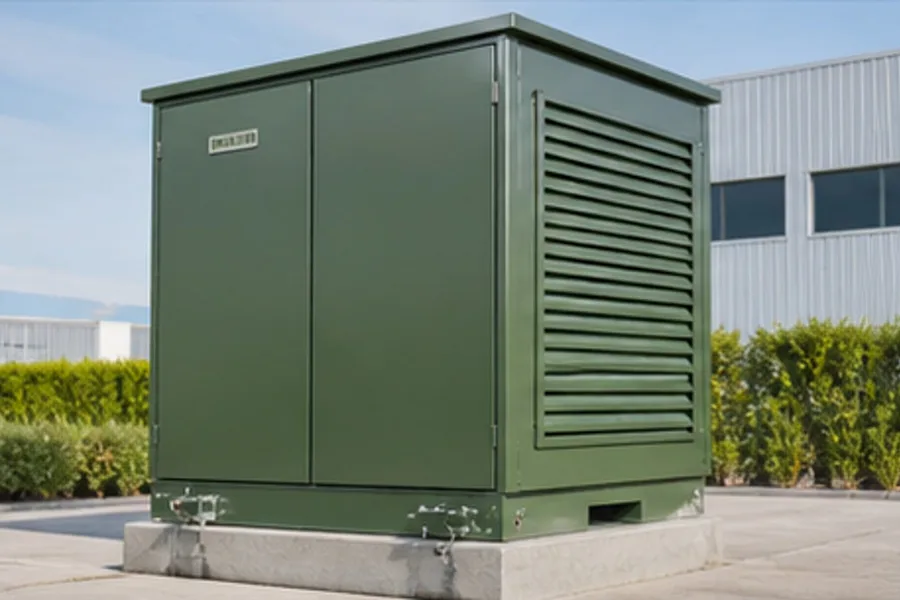

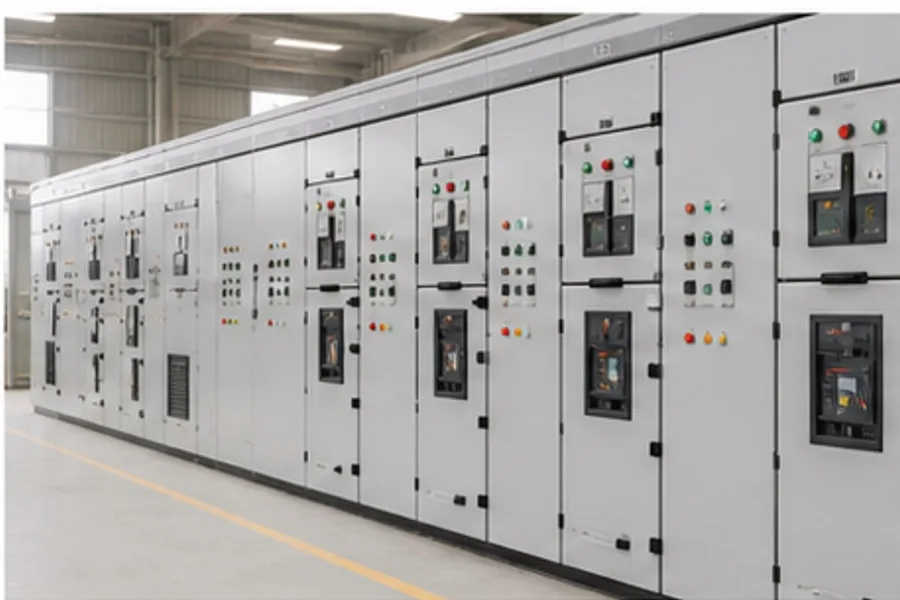

Relevant products include Compact Substations, Switchgear, Monitoring & Control. Share compact substation layout, transformer capacity, MV/LV scheme, enclosure, and site requirements. A compact substation enquiry is not a single-transformer enquiry. It is an.
Single-line and rating: Confirm primary scheme, transformer kVA, HV/LV voltage, MV circuits, LV feeders, metering, and protection logic first.
Enclosure and site interface: Enclosure material, IP rating, corrosion protection, ventilation, door direction, cable trench, foundation drawing, lifting points, and maintenance access directly change the design.
Documents to review include Transformer & Compact Substation RFQ: Single-line and rating, Transformer & Compact Substation RFQ: Enclosure and site interface, Transformer & Compact Substation RFQ: Internal package boundary, Transformer & Compact Substation..
Engineering priorities
Confirm primary scheme, transformer kVA, HV/LV voltage, MV circuits, LV feeders, metering, and protection logic first.
Enclosure material, IP rating, corrosion protection, ventilation, door direction, cable trench, foundation drawing, lifting points, and maintenance access directly change the design.
Clarify whether transformer, MV switchgear, LV board, lighting, heater, fan, internal wiring, earthing, interlocking, and labels are included.
Package equipment needs early confirmation of factory tests, shipping sections, packing, container loading, site assembly responsibility, and document handover.
Products Available for Transformer & Compact Substation RFQ
Choose the closest product family, then send capacity, voltage, quantity, destination, drawings, or a technical specification.
Project design basis
| Single-line and rating | Confirm primary scheme, transformer kVA, HV/LV voltage, MV circuits, LV feeders, metering, and protection logic first. |
|---|---|
| Enclosure and site interface | Enclosure material, IP rating, corrosion protection, ventilation, door direction, cable trench, foundation drawing, lifting points, and maintenance access directly change the design. |
| Internal package boundary | Clarify whether transformer, MV switchgear, LV board, lighting, heater, fan, internal wiring, earthing, interlocking, and labels are included. |
| FAT and transport split | Package equipment needs early confirmation of factory tests, shipping sections, packing, container loading, site assembly responsibility, and document handover. |
From requirement to delivered equipment
If no single-line diagram exists, start with transformer rating, MV incoming and outgoing circuits, LV feeders, load use, and destination to build an initial package.
List transformer, MV switchgear, LV board, enclosure, protection and metering, internal wiring, accessories, and civil interfaces line by line.
Confirm enclosure size, door direction, ventilation, cable entry, foundation, lifting, maintenance access, and transport split.
Quote against the package scope while confirming FAT, packing, loading, document list, and site responsibility boundary.
Documents and acceptance evidence
Document scope for Transformer & Compact Substation RFQ is confirmed against the exact product, ordered model, governing standard, and project document register.
Frequently asked questions
What is the minimum data for a compact substation RFQ?
At minimum, send transformer rating, MV/LV voltage, MV scheme, LV feeders, installation environment, enclosure requirement, quantity, and destination.
Can quotation start without a complete single-line diagram?
Initial review can start, but formal quotation should add single-line, enclosure layout, foundation, cable direction, and protection and metering requirements.
Why do compact substation prices vary widely?
The difference usually comes from MV switchgear, LV board, enclosure material, protection and metering, internal wiring, ventilation, corrosion treatment, FAT, packing, and transport split.
How is this different from a single transformer RFQ?
A compact substation is a package scope. Transformer, MV, LV, enclosure, internal interfaces, civil interface, and delivery responsibility must be confirmed together.
Discuss your transformer project
Send the available capacity, voltage, quantity, destination, drawing, or specification for Transformer & Compact Substation RFQ. We will confirm the equipment configuration, test documents, and delivery scope against the actual project.
