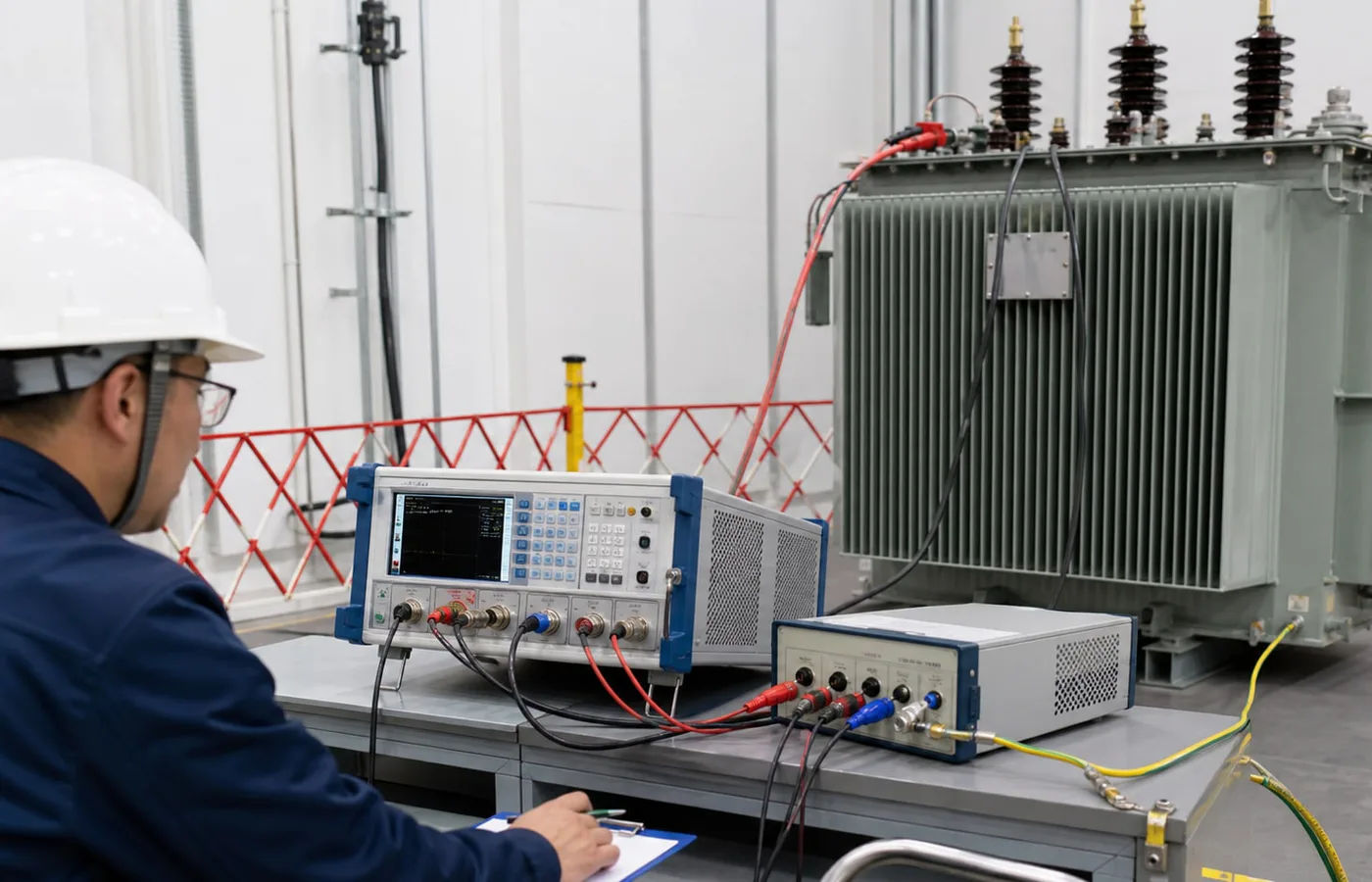

Transformer No-Load Loss Test
No-load loss and current measurement for transformer core performance, guaranteed efficiency data, and routine-test acceptance.
No-load values depend on applied voltage, frequency, waveform, tap position, measurement connection, instrument accuracy, and temperature or reference conditions where applicable. The measured values must be compared with the guaranteed schedule and the tolerance basis of the applicable standard or contract.
Test scope and acceptance basis
No-load loss and current measurement for transformer core performance, guaranteed efficiency data, and routine-test acceptance.
No-load values depend on applied voltage, frequency, waveform, tap position, measurement connection, instrument accuracy, and temperature or reference conditions where applicable. The measured values must be compared with the guaranteed schedule and the tolerance basis of the applicable standard or contract.
Guaranteed schedule, applicable standard, tolerance, correction method, repeat measurement, and deviation approval.
Products Supported by Transformer No-Load Loss Test
The test scope and quality files must match the actual product, rated data, applicable standard, and confirmed order specification.
How the work is controlled
Confirm energised winding, open-circuit winding, tap position, frequency, rated voltage, instrument transformers, and wiring.
Raise voltage under controlled conditions and confirm stable frequency, waveform, and measurement channels.
Record voltage, current, active power, phase quantities where applicable, correction data, and calculated no-load values.
Compare no-load loss and current with guaranteed values and tolerances, investigate abnormal imbalance or waveform effects.
Project inputs and acceptance basis
| Rated basis | Capacity, voltage, frequency, phase, tap, vector group, core design, guaranteed no-load loss, and current. |
|---|---|
| Test supply | Voltage stability, frequency, waveform quality, energised winding, phase sequence, and source capacity. |
| Measurement chain | Power analyser, voltage/current transformers, ranges, ratios, phase error, wiring, calibration, and uncertainty where required. |
| Acceptance basis | Guaranteed schedule, applicable standard, tolerance, correction method, repeat measurement, and deviation approval. |
Available project records
Technical questions: Transformer No-Load Loss Test
Does Transformer No-Load Loss Test apply to every transformer?
Applicability depends on product type, rating, applicable standard, and the order specification. Routine tests normally apply to each unit; type or special tests are confirmed by project.
What is the acceptance basis for Transformer No-Load Loss Test?
Acceptance should use the approved data sheet, applicable standard and edition, guaranteed values, tolerances, agreed deviations, procedure, and order requirements.
What should be confirmed before the work starts?
Capacity, voltage, frequency, phase, tap, vector group, core design, guaranteed no-load loss, and current.
What test or quality records can be produced?
No-load test circuit, Applied voltage and frequency data, Phase and total power measurements, Calculated no-load loss and current, Guaranteed-value comparison, Signed routine-test result
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
