Dry Type Transformers
Dry-type transformers for indoor electrical rooms, buildings, factories, hospitals, data centers, and fire-sensitive environments.
Overview
Dry Type Transformers Overview
Dry-type transformers for indoor electrical rooms, buildings, factories, hospitals, data centers, and fire-sensitive environments.
Dry Type Transformers can be engineered around electrical parameters, installation conditions, accessories, testing, and delivery requirements.
commercial buildings, data centers, hospitals, factories, metro and airport facilities
capacity and voltage ratio, insulation class, temperature rise, enclosure/IP rating, cooling fans and controller, partial discharge expectation
outline drawing, temperature controller data, routine test report, partial discharge reference, enclosure drawing, manual
insufficient ventilation, unclear enclosure, noise complaints, missing temperature-control contacts, wrong indoor clearance
Dry Type Transformers Product Lineup
Open the relevant product page by application, voltage class, capacity, installation method, and project standard to review configuration, testing, and enquiry data.

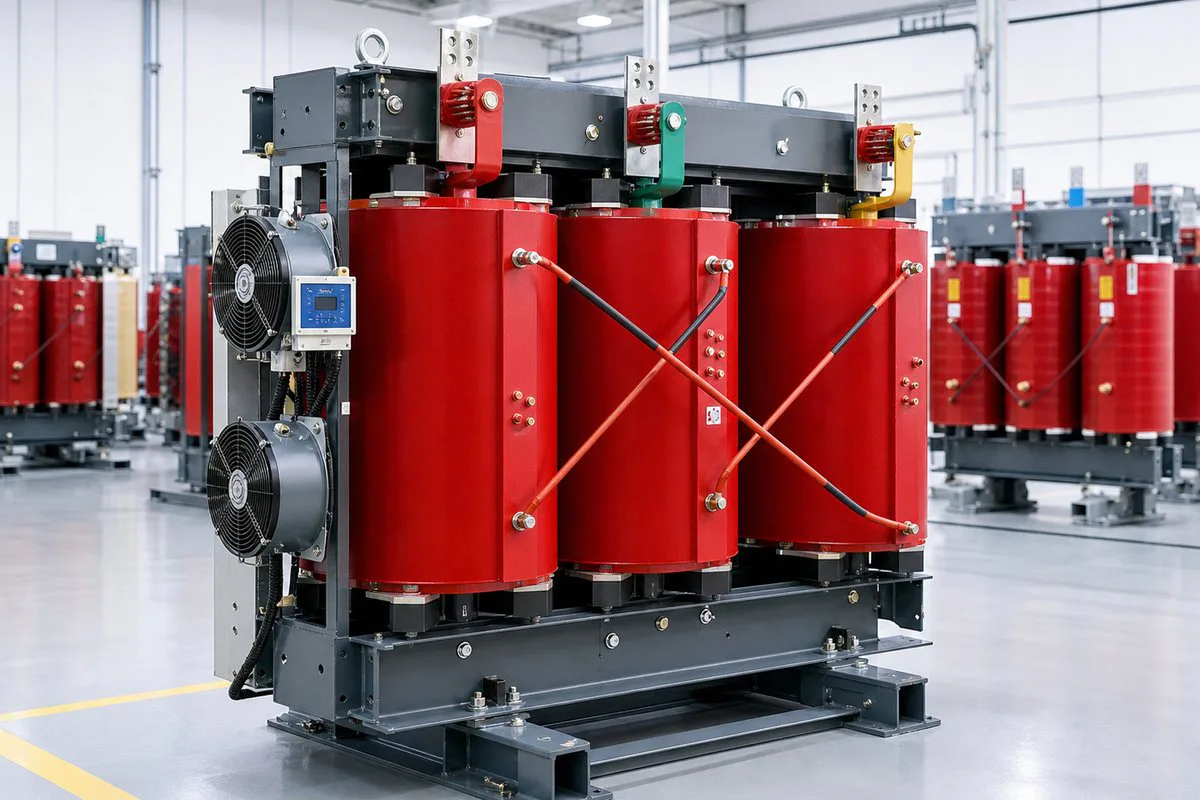

Cast Resin Dry Type Transformer
Epoxy cast resin transformers for moisture resistance, indoor reliability, and low partial discharge requirements.

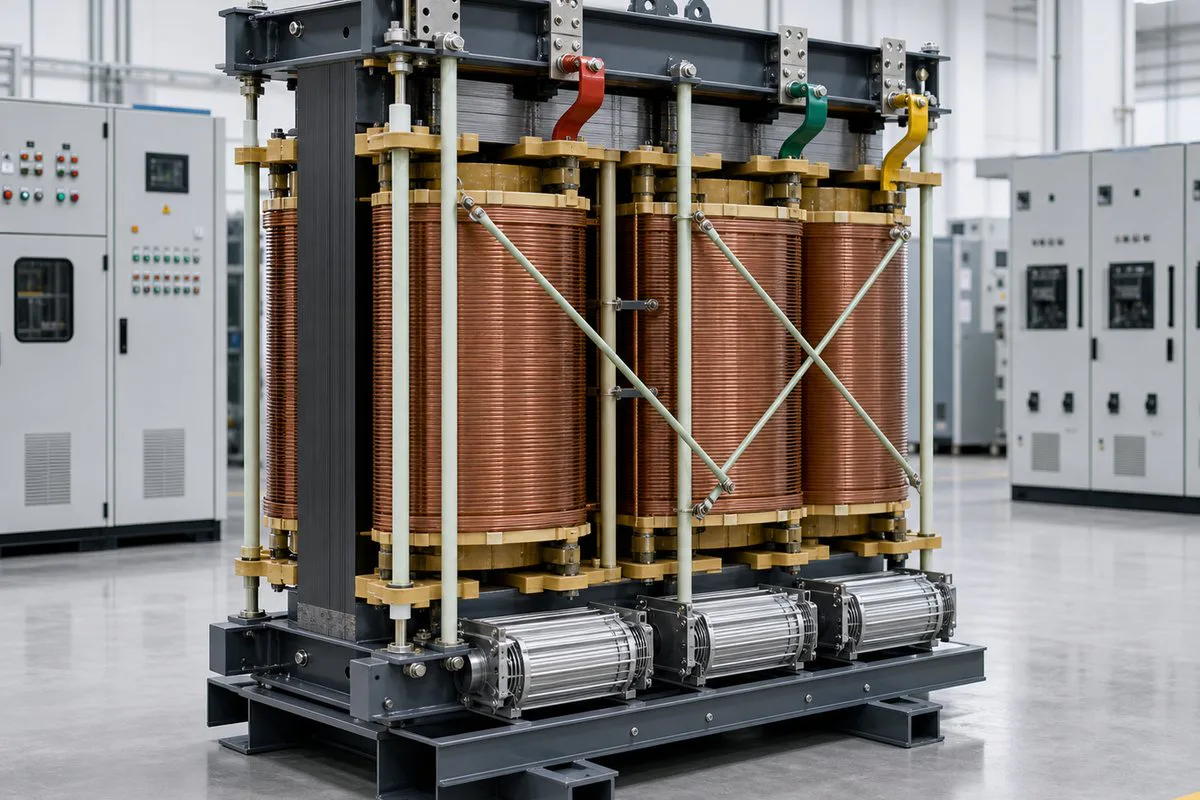

Non-Encapsulated Dry Type Transformer
Open ventilated dry-type transformers for industrial and commercial distribution environments.

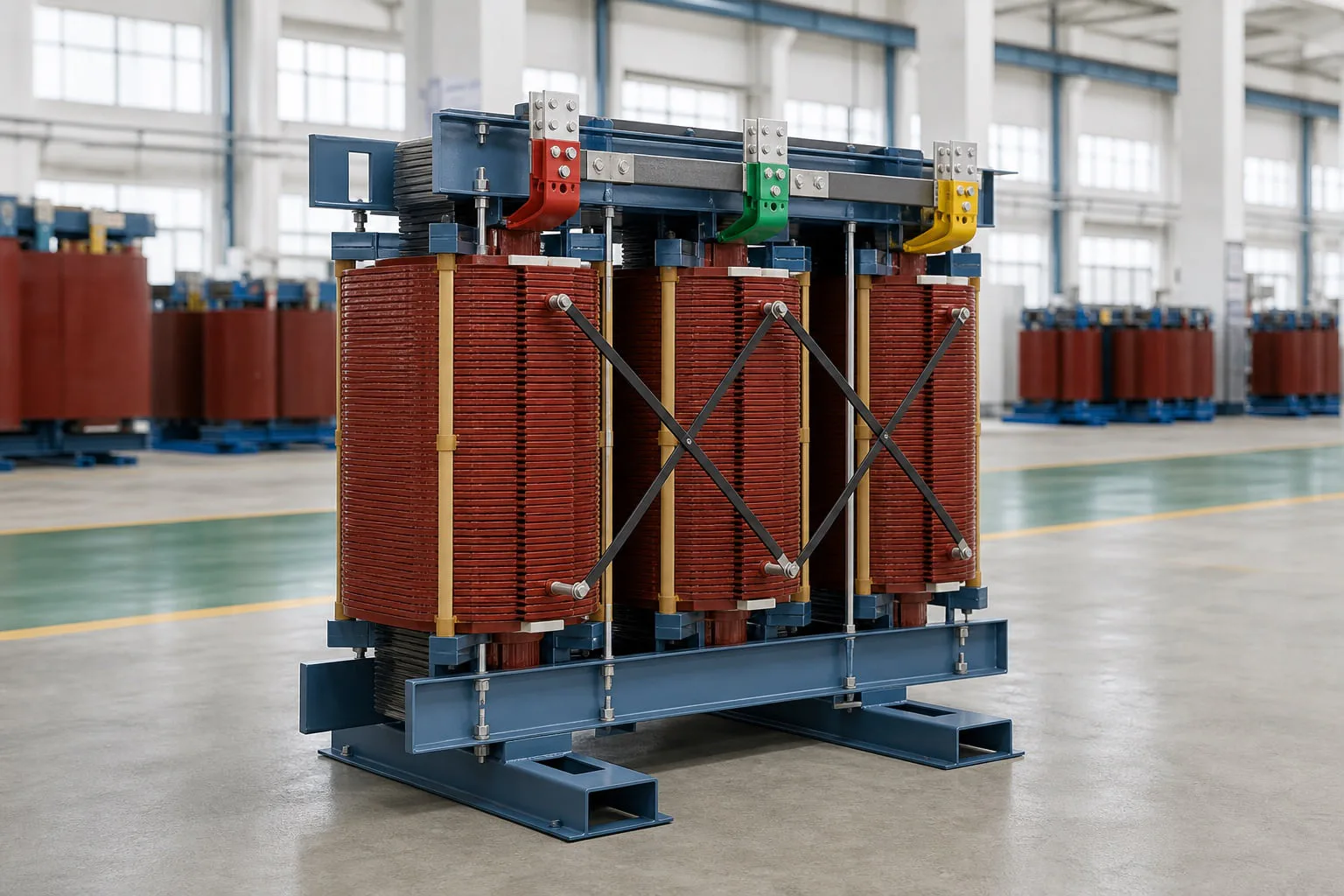

SG Series Dry Type Transformer
SG series dry-type transformers for rugged indoor and industrial distribution applications.

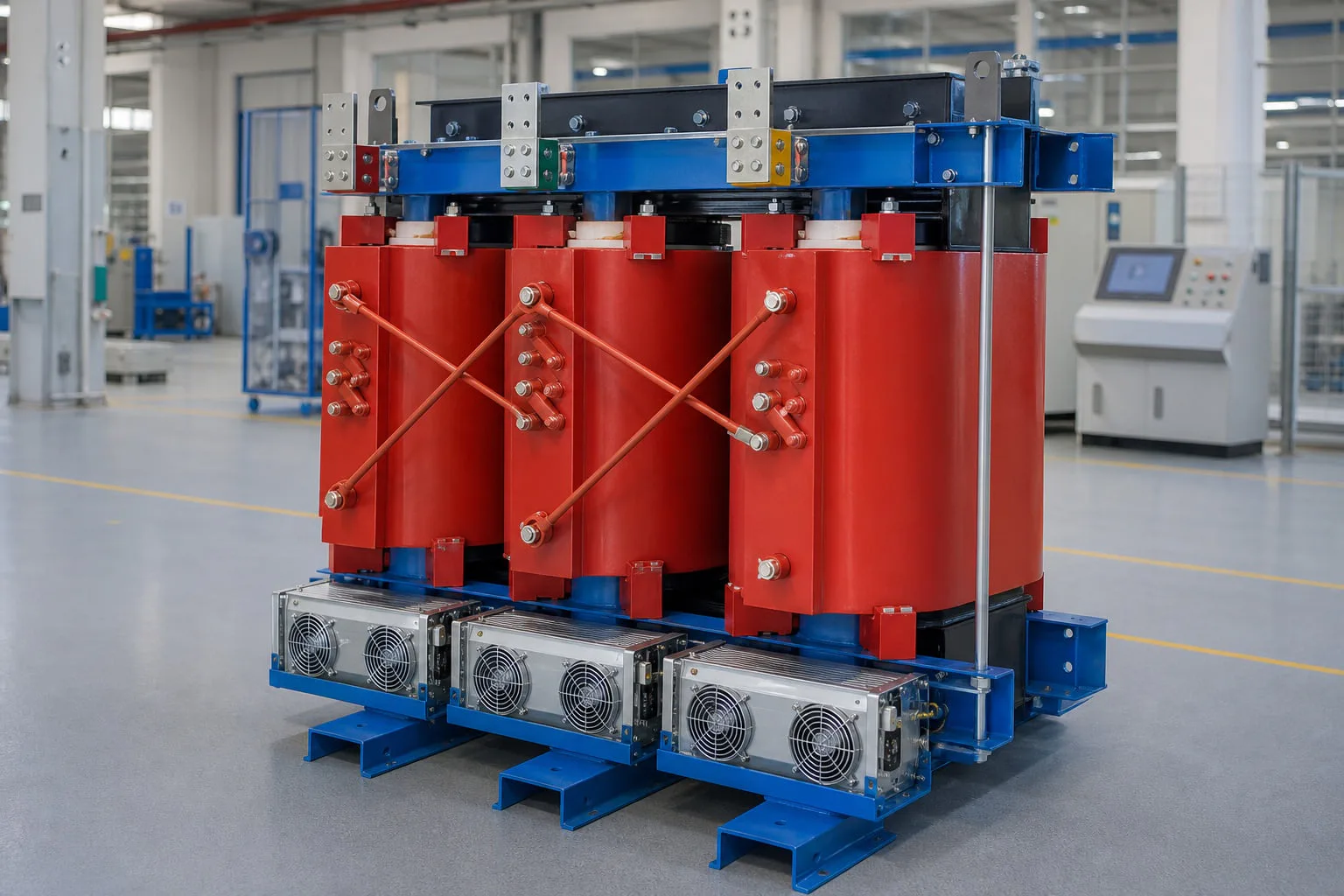

SCB Series Dry Type Transformer
SCB series cast resin transformers for building, industrial, and infrastructure projects.

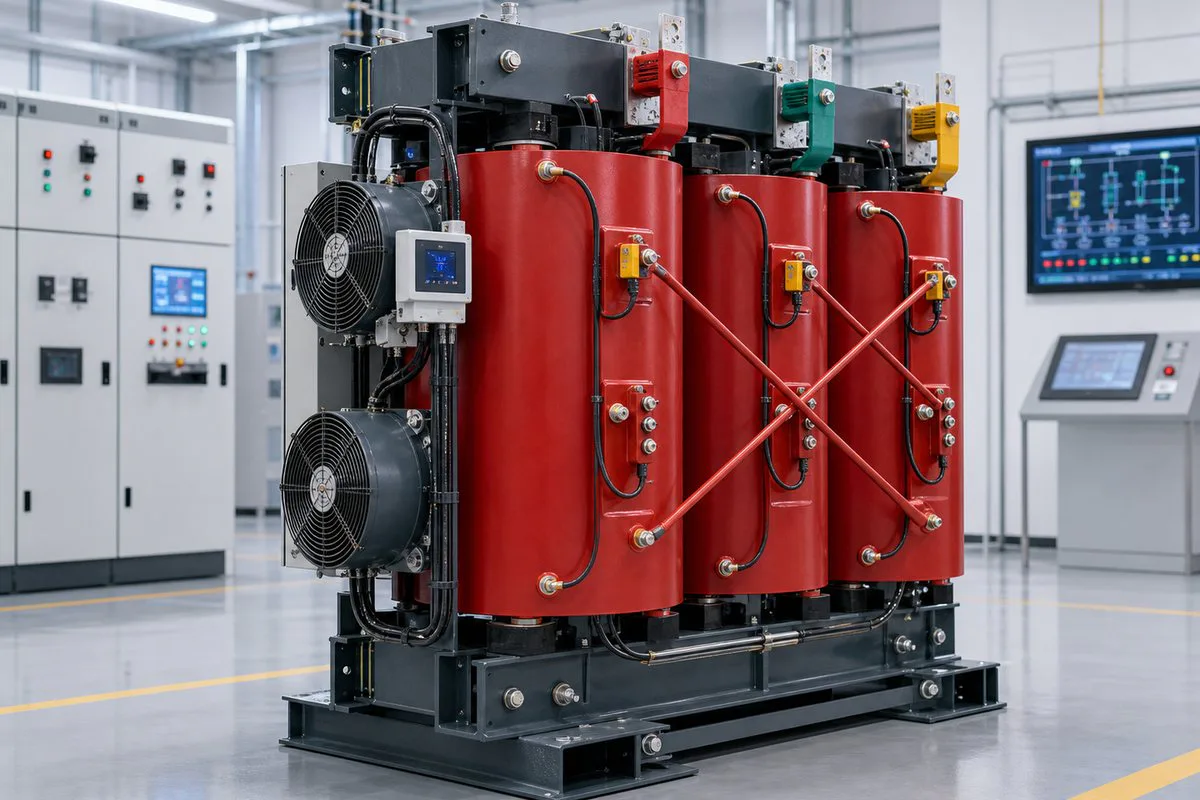

Intelligent Dry Type Transformer
Dry-type transformers with monitoring, temperature control, and smart distribution integration options.

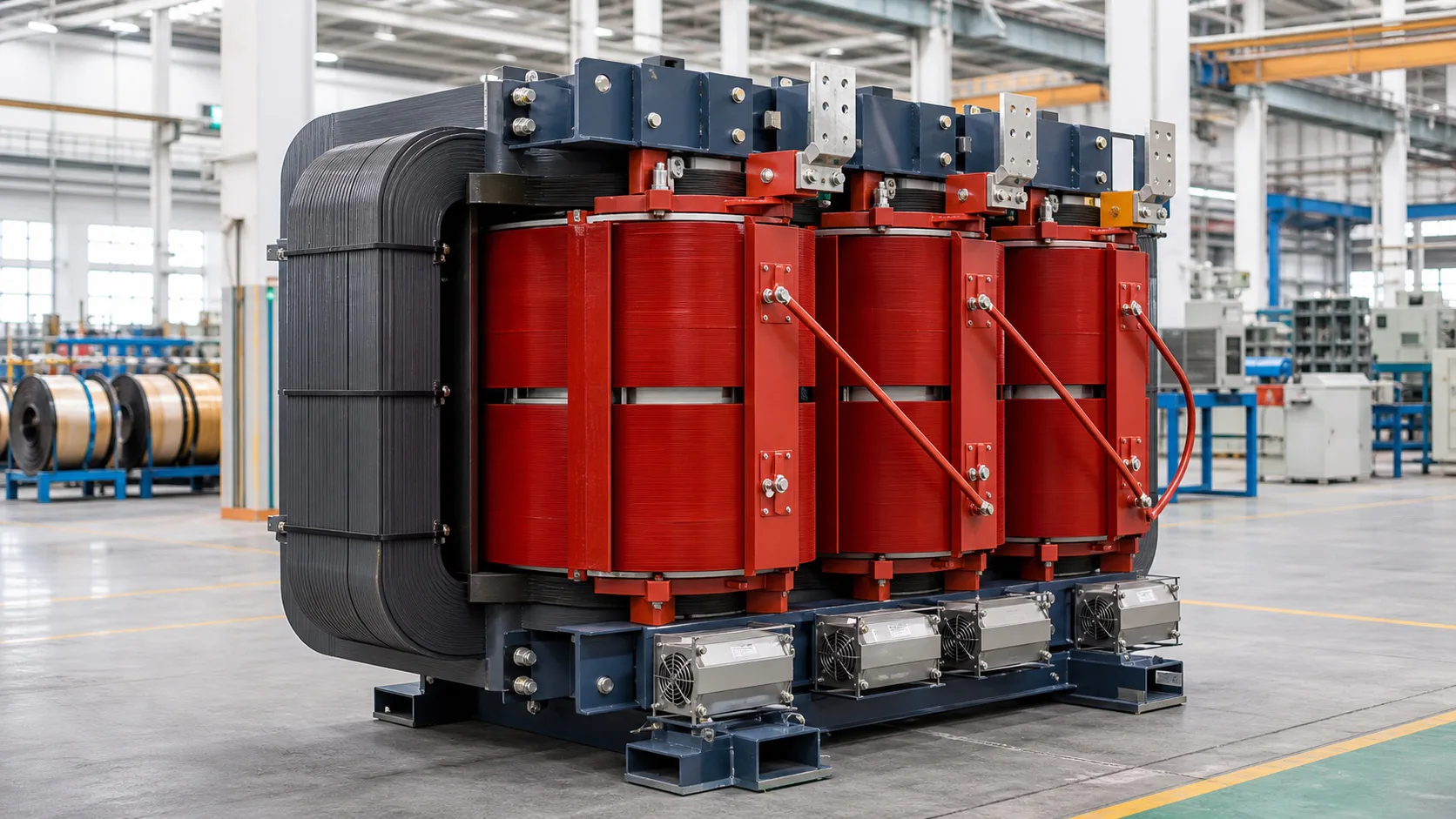

Low Loss Dry Type Transformer
Efficient dry transformers for projects where long-term operating cost matters.

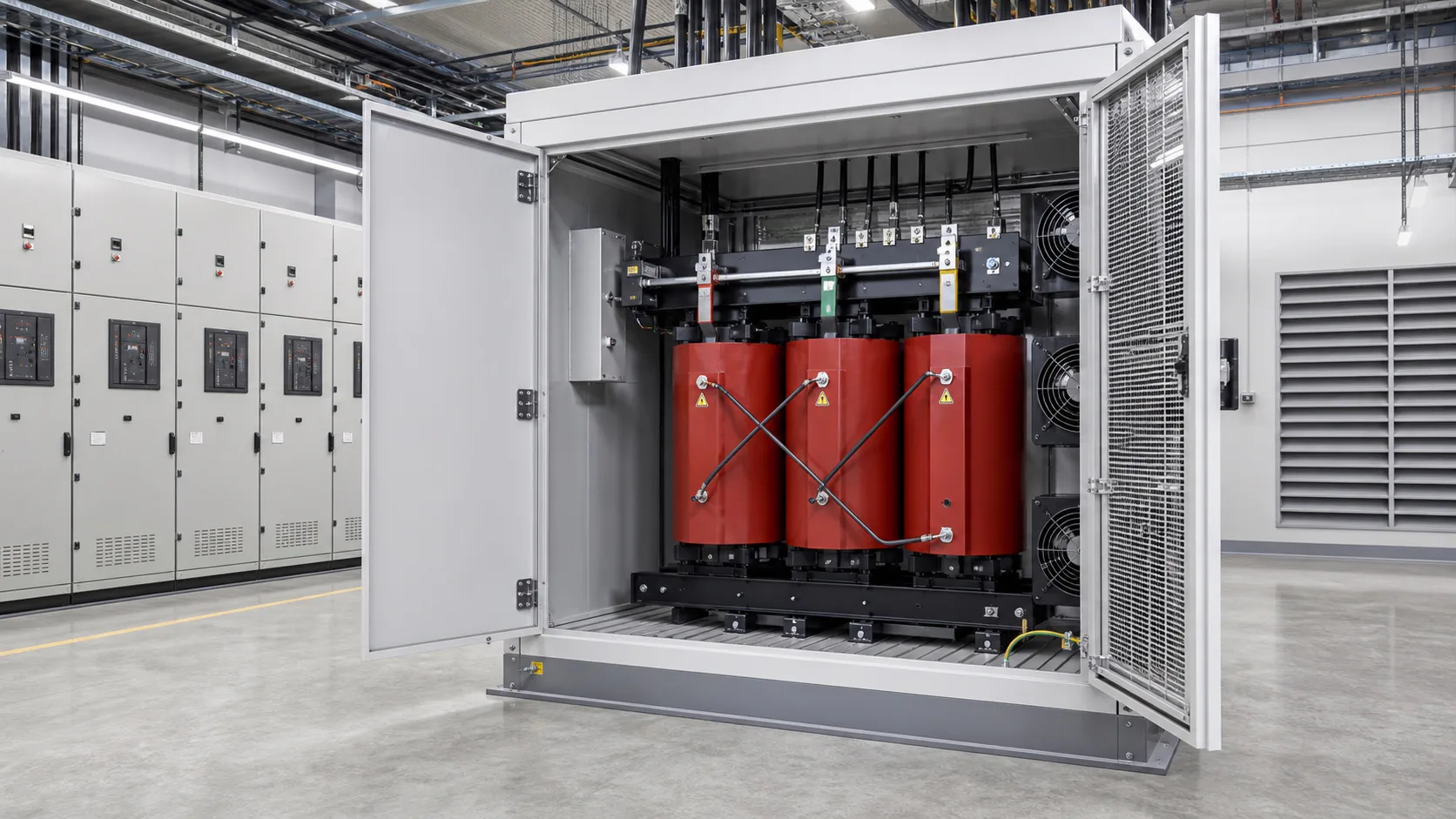

Indoor Dry Type Transformer
Indoor transformers for electrical rooms, commercial buildings, hospitals, and data centers.

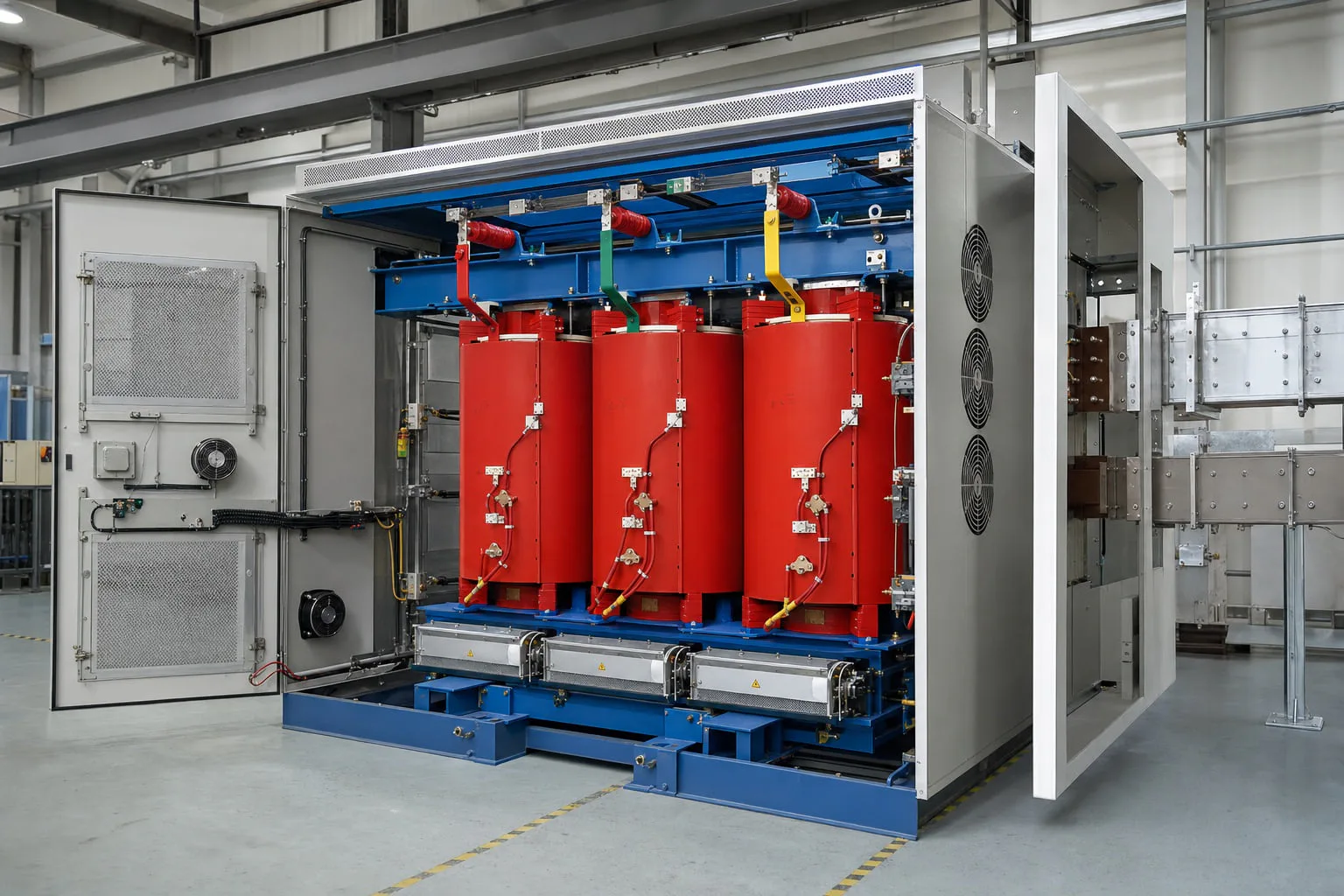

Custom Dry Type Transformer
Custom dry transformer options for enclosure, voltage, capacity, cooling, noise, and protection requirements.
PRODUCT SELECTION CENTER
Dry Type Transformers: selection, configuration, and project files
Move from the application to the right product page, then confirm Dry Type Transformers against electrical data, installation conditions, testing requirements, and delivery documents.
commercial buildings, data centers, hospitals, factories, metro and airport facilities
capacity and voltage ratio, insulation class, temperature rise, enclosure/IP rating, cooling fans and controller, partial discharge expectation
outline drawing, temperature controller data, routine test report, partial discharge reference, enclosure drawing, manual
Technical Details
Dry-Type Transformer Product Range
Select the dry-type construction from voltage, capacity, winding insulation, room conditions, enclosure, cooling, loss guarantees, noise, monitoring, and the applicable project standard.
Published capacity: 30-16,000 kVA; Primary voltage: 10 / 20 / 35 kV; Winding insulation: Vacuum-cast epoxy resin; Cooling: Air natural / air forced (AN/AF)
Published capacity: ≤3,150 kVA; Primary voltage: ≤10 kV; Winding insulation: VPI; Cooling: Air natural / air forced (AN/AF)
Published capacity: 30-2,500 kVA; Primary voltage: 10 kV; Published series: SG(B)13 / 14 / 18; Cooling: Air natural / air forced (AN/AF)
Published capacity: 30-3,150 kVA; Primary voltage: 10 / 20 kV; Published series: SC(B)10 / 11 / 12 / 13 / 14 / 18; Cooling: Air natural / air forced (AN/AF)
Published series: SC(B); Primary voltage: 10 / 20 kV; Monitoring and control: RS485 / Modbus; Cooling: Air natural / air forced (AN/AF)
Published capacity: 100-2,500 kVA; Primary voltage: 6 / 10 / 11 / 20 / 35 kV; Core material: Amorphous-alloy cast-resin core and winding system; Cooling: Air natural / air forced (AN/AF)
Primary voltage: 10 / 20 / 35 kV; Winding insulation: Cast resin or VPI according to the selected family; Enclosure: IP; Cooling: Air natural / air forced (AN/AF)
Published capacity: 30-16,000 kVA; Primary voltage: 10 / 20 / 35 kV+; Enclosure: Enclosure, cable entry, finish, and protection by project; Cooling: Air natural / air forced (AN/AF)
Catalog ratings describe published product families. Guaranteed losses, impedance, temperature rise, partial discharge, sound level, accessories, and dimensions are confirmed in the quotation and approved data sheet.
