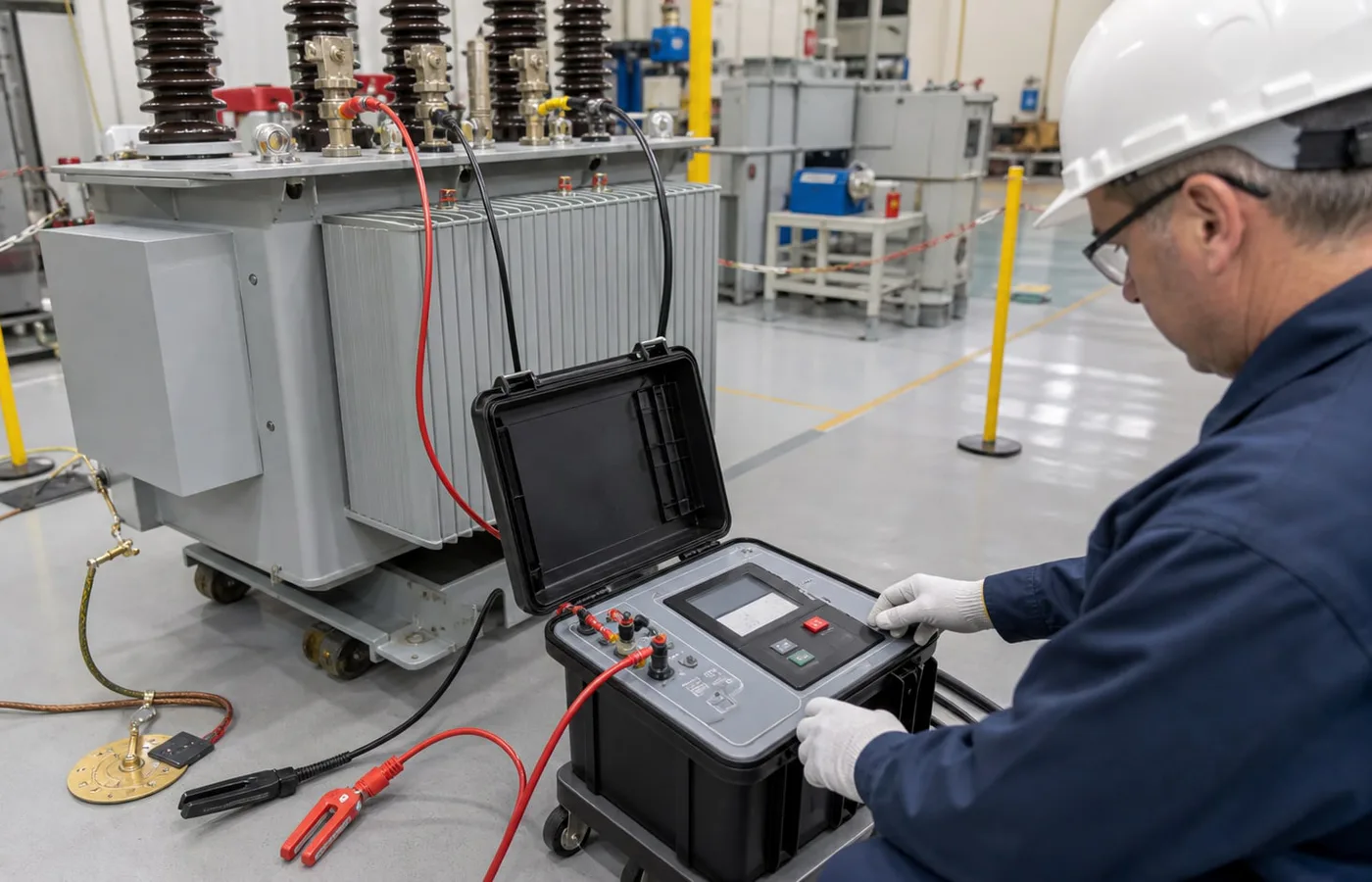

Transformer Insulation Resistance Test
Insulation-resistance measurement used as a condition and quality check for transformer windings, insulation systems, wiring, and applicable accessories.
Insulation-resistance values are influenced by temperature, humidity, test voltage, charging time, connection, surface condition, recent dielectric tests, and equipment type. Results should therefore be recorded with conditions and interpreted as part of the wider insulation assessment, not as a single universal pass value.
Test scope and acceptance basis
Insulation-resistance measurement used as a condition and quality check for transformer windings, insulation systems, wiring, and applicable accessories.
Insulation-resistance values are influenced by temperature, humidity, test voltage, charging time, connection, surface condition, recent dielectric tests, and equipment type. Results should therefore be recorded with conditions and interpreted as part of the wider insulation assessment, not as a single universal pass value.
Applicable standard or procedure, temperature correction where used, previous values, trends, and related dielectric results.
Products Supported by Transformer Insulation Resistance Test
The test scope and quality files must match the actual product, rated data, applicable standard, and confirmed order specification.
How the work is controlled
Isolate the equipment, discharge stored energy, clean and dry test points, and record temperature and humidity.
Define winding-to-winding, winding-to-earth, core, control-circuit, or accessory measurements and guard connections.
Apply the selected DC test voltage for the specified time and record stable or timed values safely.
Compare with the applicable basis and prior data, record conditions, then fully discharge and restore the equipment.
Project inputs and acceptance basis
| Equipment and circuit | Transformer type, voltage class, winding arrangement, core grounding, controls, accessories, and isolation points. |
|---|---|
| Test condition | Temperature, humidity, surface cleanliness, recent testing, oil or dry insulation condition, and stabilization time. |
| Measurement method | DC test voltage, duration, connection, guarding, instrument range, calibration, timed readings, and discharge. |
| Assessment basis | Applicable standard or procedure, temperature correction where used, previous values, trends, and related dielectric results. |
Available project records
Technical questions: Transformer Insulation Resistance Test
Does Transformer Insulation Resistance Test apply to every transformer?
Applicability depends on product type, rating, applicable standard, and the order specification. Routine tests normally apply to each unit; type or special tests are confirmed by project.
What is the acceptance basis for Transformer Insulation Resistance Test?
Acceptance should use the approved data sheet, applicable standard and edition, guaranteed values, tolerances, agreed deviations, procedure, and order requirements.
What should be confirmed before the work starts?
Transformer type, voltage class, winding arrangement, core grounding, controls, accessories, and isolation points.
What test or quality records can be produced?
Test connection schedule, Temperature and humidity record, Test voltage and duration, Measured insulation-resistance values, Instrument and calibration reference, Evaluation and safe-discharge record
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
