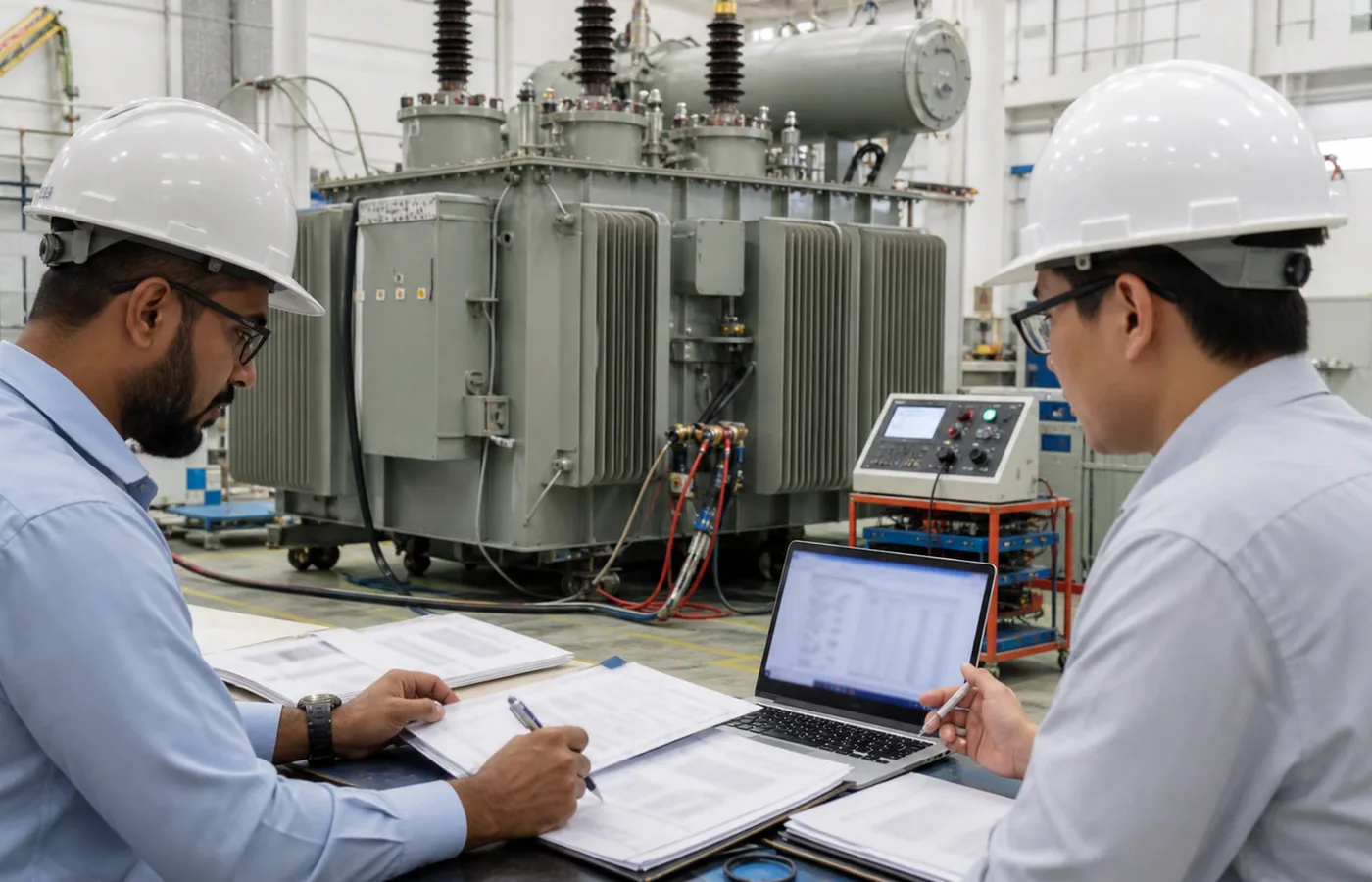

Transformer Test Report Review
Transformer test-report review that checks product identity, applicable standard, test method, measured values, tolerances, signatures, and relevance to the ordered equipment.
A report is useful only when it can be linked to the actual transformer or to a demonstrably relevant design reference. Model, rating, serial number, drawing or design identity, standard edition, test circuit, conditions, instruments, calculations, results, acceptance, revisions, and authorization should be reviewed together.
Test scope and acceptance basis
Transformer test-report review that checks product identity, applicable standard, test method, measured values, tolerances, signatures, and relevance to the ordered equipment.
A report is useful only when it can be linked to the actual transformer or to a demonstrably relevant design reference. Model, rating, serial number, drawing or design identity, standard edition, test circuit, conditions, instruments, calculations, results, acceptance, revisions, and authorization should be reviewed together.
Guaranteed values, standard tolerances, project limits, deviations, retest rules, witness comments, and approval authority.

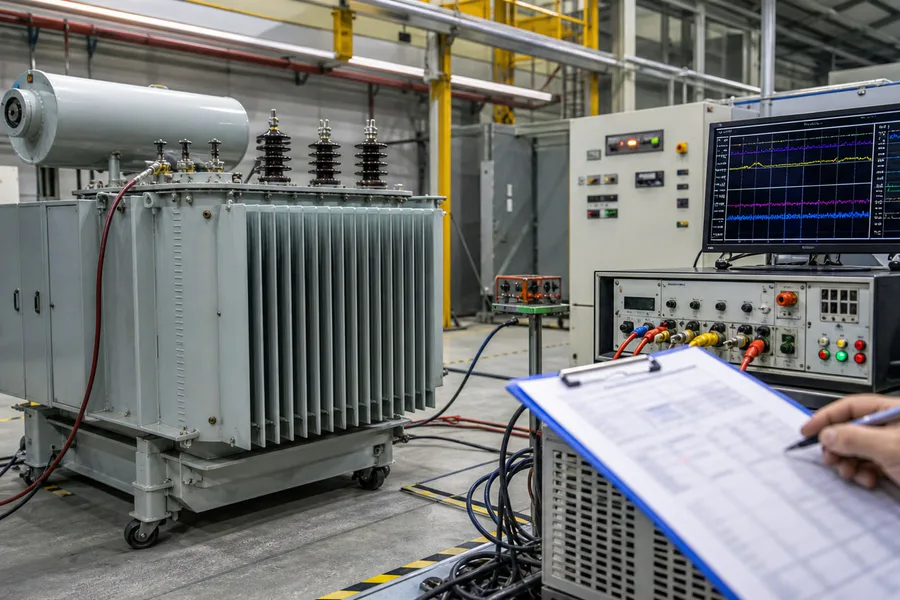

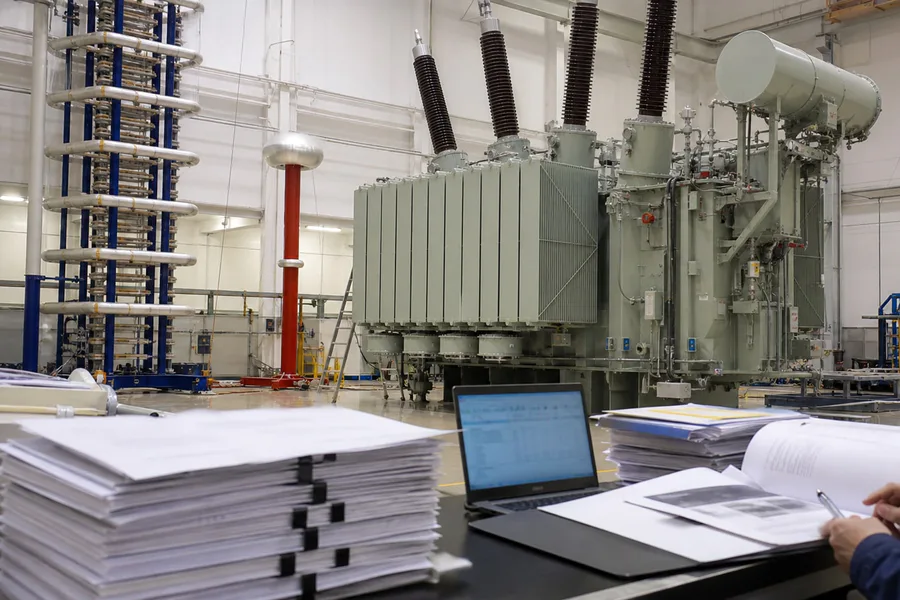

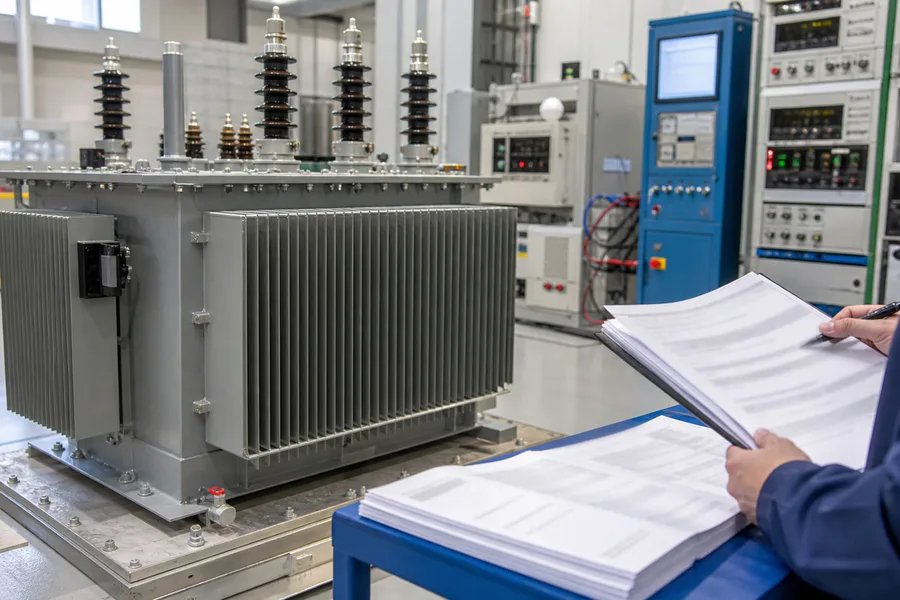

Products Supported by Transformer Test Report Review
The test scope and quality files must match the actual product, rated data, applicable standard, and confirmed order specification.
How the work is controlled
Match report title, manufacturer or laboratory, order, model, serial, rating, date, and tested object.
Review standard and edition, test circuit, setup, conditions, sequence, instruments, calibration references, and calculations.
Compare measured and corrected values with guaranteed data, specified limits, tolerances, and accepted deviations.
Record completeness, inconsistencies, open questions, applicability, required correction, and acceptance status.
Project inputs and acceptance basis
| Order basis | Purchase order, specification, approved data sheet, drawings, guaranteed values, deviations, and test plan. |
|---|---|
| Report identity | Issuer, laboratory, report number, revision, date, tested equipment, serial number, ratings, and signatures. |
| Technical basis | Standard, method, circuit, conditions, instruments, calibration, raw data, corrections, calculations, and uncertainty where required. |
| Acceptance basis | Guaranteed values, standard tolerances, project limits, deviations, retest rules, witness comments, and approval authority. |
Available project records
Technical questions: Transformer Test Report Review
Does Transformer Test Report Review apply to every transformer?
Applicability depends on product type, rating, applicable standard, and the order specification. Routine tests normally apply to each unit; type or special tests are confirmed by project.
What is the acceptance basis for Transformer Test Report Review?
Acceptance should use the approved data sheet, applicable standard and edition, guaranteed values, tolerances, agreed deviations, procedure, and order requirements.
What should be confirmed before the work starts?
Purchase order, specification, approved data sheet, drawings, guaranteed values, deviations, and test plan.
What test or quality records can be produced?
Report-to-equipment identity check, Standard and method review, Measured/guaranteed value comparison, Calculation and correction check, Comment and discrepancy register, Documented acceptance conclusion
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
