Transformer Load Loss Test
Load loss and short-circuit impedance measurement for transformer winding performance, guaranteed losses, voltage regulation, and thermal design inputs.

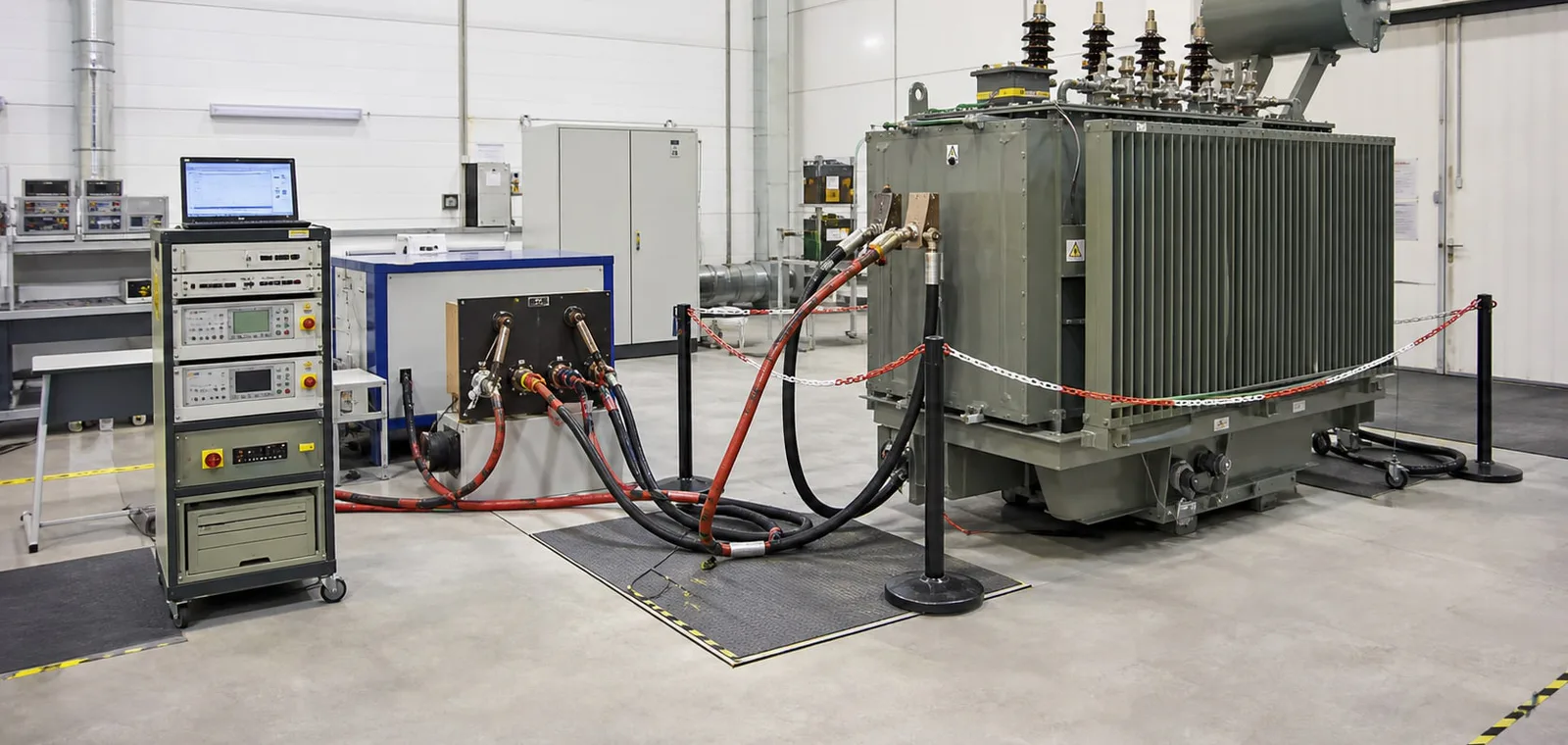

The measurement is performed with one winding energised and another appropriately short-circuited, at a defined tap and frequency. Current, voltage, power, winding temperature, instrument ratios, stray effects, and temperature correction must be recorded before comparison with guaranteed values.
Test scope and acceptance basis
Load loss and short-circuit impedance measurement for transformer winding performance, guaranteed losses, voltage regulation, and thermal design inputs.
The measurement is performed with one winding energised and another appropriately short-circuited, at a defined tap and frequency. Current, voltage, power, winding temperature, instrument ratios, stray effects, and temperature correction must be recorded before comparison with guaranteed values.
Guaranteed schedule, correction formula, applicable standard, tolerances, repeat testing, and deviation handling.
Products Supported by Transformer Load Loss Test
The test scope and quality files must match the actual product, rated data, applicable standard, and confirmed order specification.
How the work is controlled

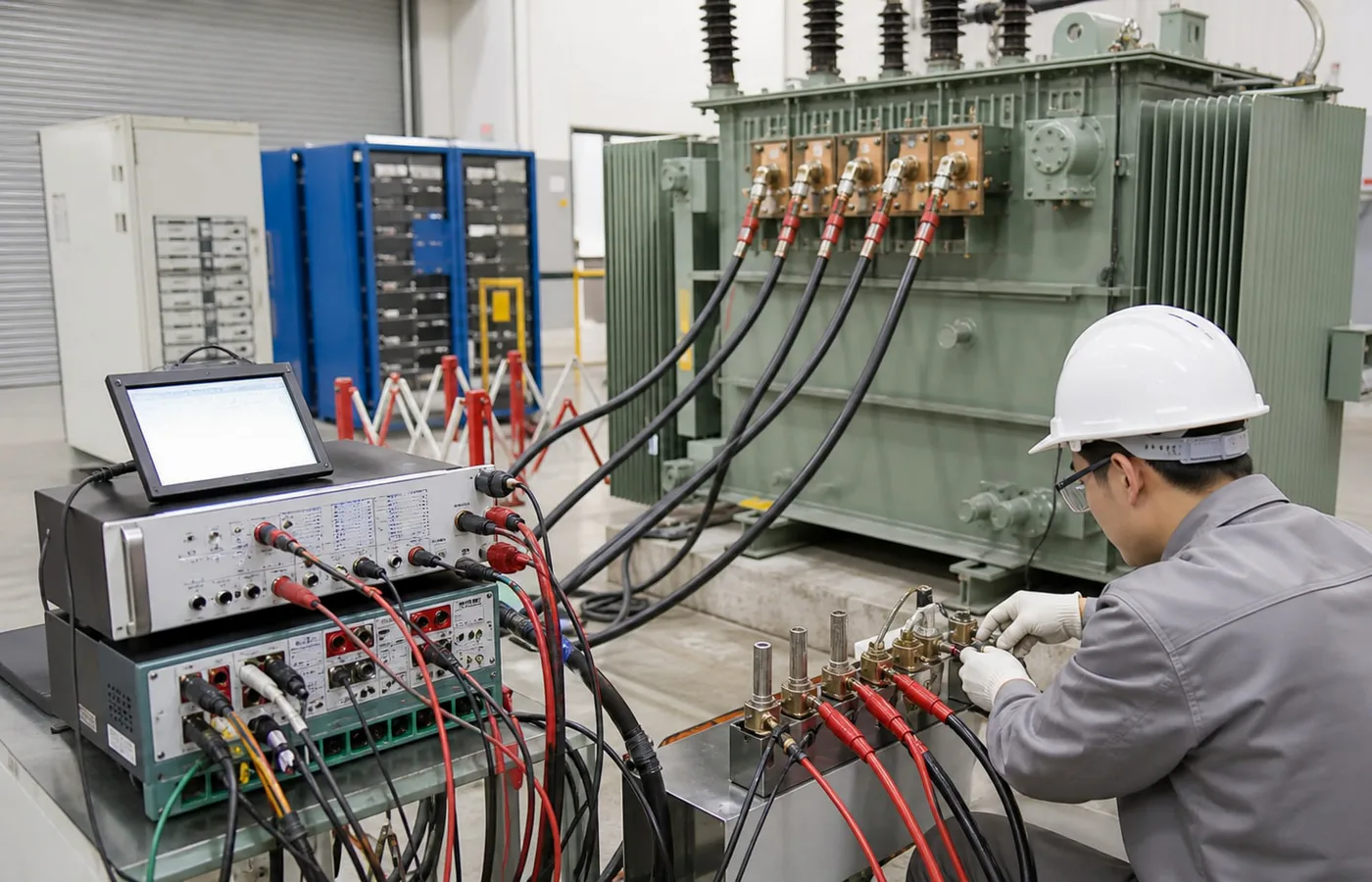

Confirm energised and short-circuited windings, tap, current path, terminal links, earthing, instruments, and protection.
Apply current under controlled conditions and record voltage, current, power, frequency, and winding temperature.
Calculate load loss and impedance and correct to the specified reference temperature and rated conditions.
Compare corrected results with guaranteed values and tolerances, reviewing phase balance, connection, and instrument effects.
Project inputs and acceptance basis
| Rated data | Capacity, voltages, frequency, vector group, tap, rated currents, guaranteed load loss, impedance, and reference temperature. |
|---|---|
| Test connection | Energised winding, shorted winding, conductor and link capacity, current source, earthing, protection, and cooling state. |
| Measurement chain | Voltage, current, power, temperature, instrument ratios, phase errors, calibration, wiring, and uncertainty where required. |
| Acceptance basis | Guaranteed schedule, correction formula, applicable standard, tolerances, repeat testing, and deviation handling. |
Available project records
Technical questions: Transformer Load Loss Test
Does Transformer Load Loss Test apply to every transformer?
Applicability depends on product type, rating, applicable standard, and the order specification. Routine tests normally apply to each unit; type or special tests are confirmed by project.
What is the acceptance basis for Transformer Load Loss Test?
Acceptance should use the approved data sheet, applicable standard and edition, guaranteed values, tolerances, agreed deviations, procedure, and order requirements.
What should be confirmed before the work starts?
Capacity, voltages, frequency, vector group, tap, rated currents, guaranteed load loss, impedance, and reference temperature.
What test or quality records can be produced?
Short-circuit test connection, Measured current, voltage, power, and temperature, Temperature-correction calculation, Corrected load-loss result, Calculated short-circuit impedance, Guaranteed-value and tolerance review
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
