IEC Transformer Standards
IEC-based transformer engineering and testing support, with the applicable standard parts, editions, project deviations, ratings, tolerances, and records defined for the ordered equipment.
Writing 'IEC standard' in an RFQ is not enough. The available supplier portfolio includes IEC/EN-oriented transformer files, KEMA-tested references, routine/type/special test records, and product-family evidence for distribution transformers, dry-type transformers, oil-immersed transformers, compact substations, and high-voltage power transformers. The relevant standard number and part, edition, local adoption, purchaser specification, special service conditions, guaranteed values, tests, tolerances, and document language must be confirmed before design and quotation are final.
Published evidence for international transformer projects
These previews are rendered at high resolution from original documents. Registration identity, address, traceability numbers, and signatures are redacted in the public version; complete project files are available during project qualification. Documents that require periodic renewal are still included in the project file set, while public pages show type, standard, scope, and market use instead of fixed document dates.

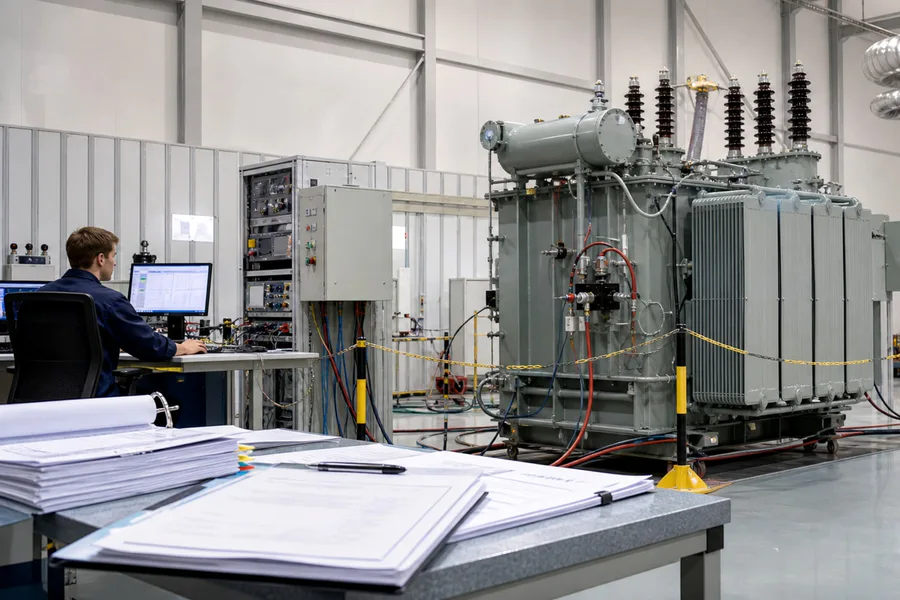

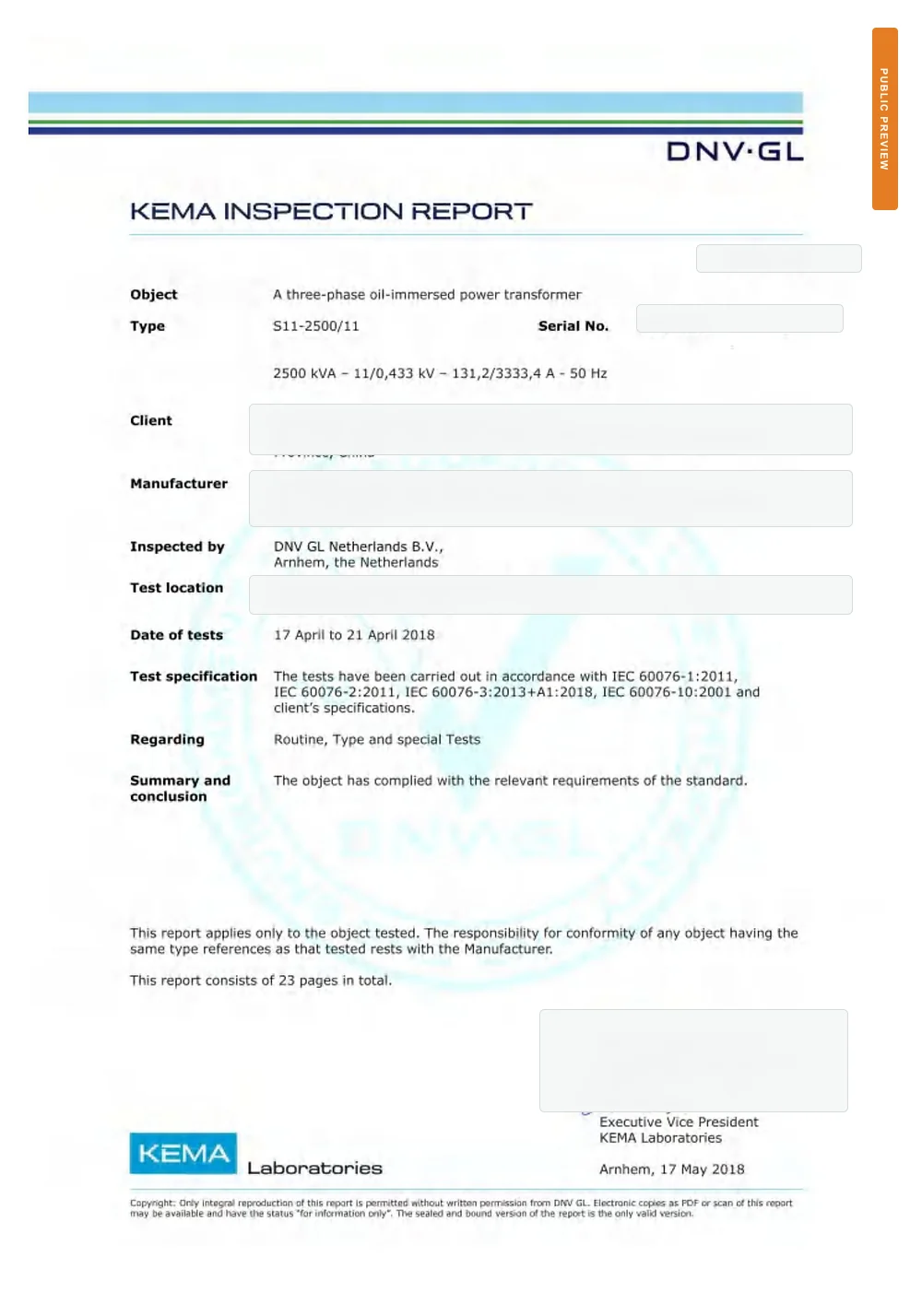

Routine, type, and special tests for an 11kV, 2500kVA oil immersed transformer tested design.
2500kVA · 11/0.433kV · IEC 60076View clear preview →

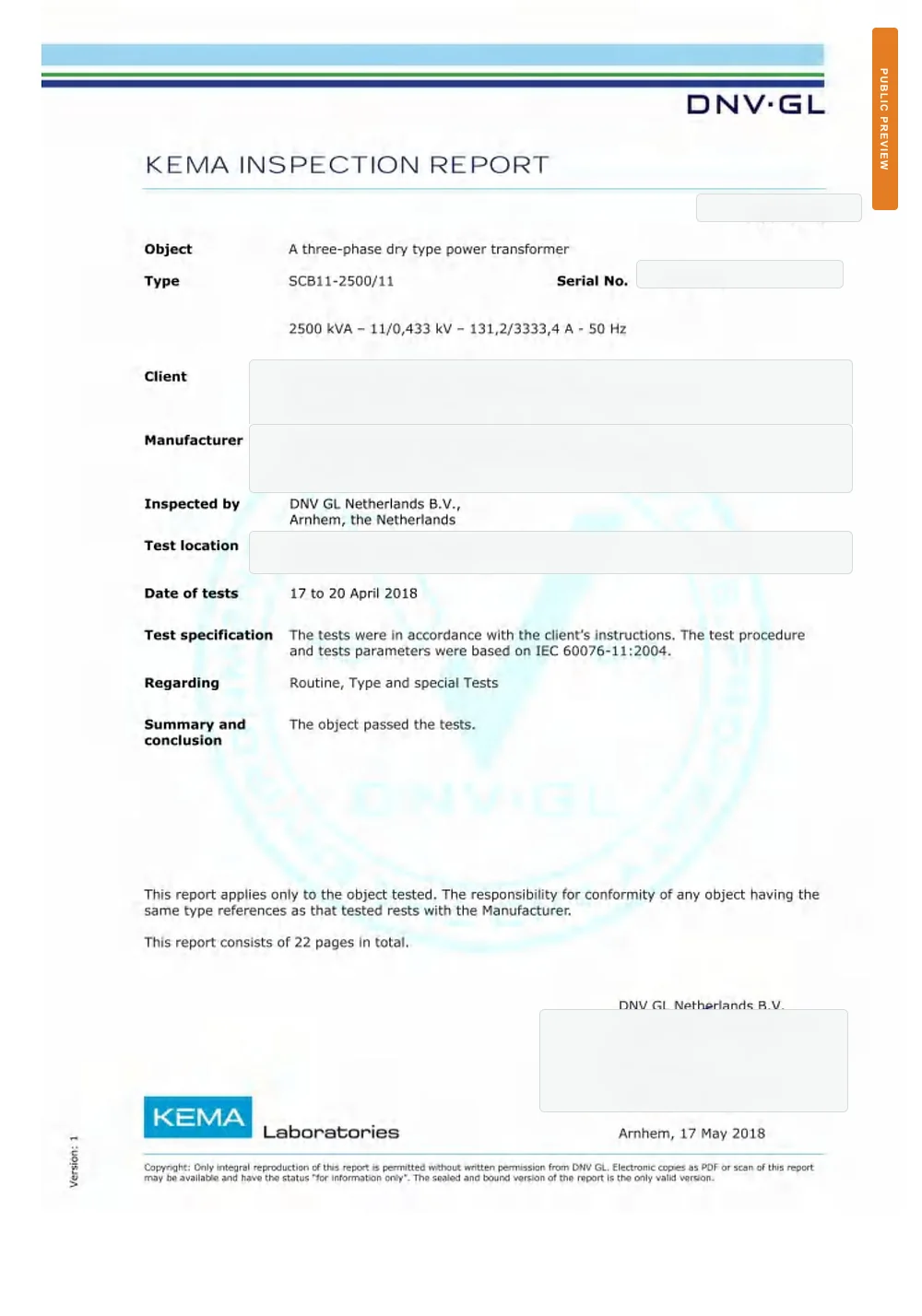

Routine, type, and special tests for an 11kV, 2500kVA dry-type transformer tested design.
2500kVA · 11/0.433kV · IEC 60076-11View clear preview →
Low Voltage Directive conformity documentation with covered dry-type transformer model series listed in the document.
2014/35/EU · EN 60076 seriesView clear preview →

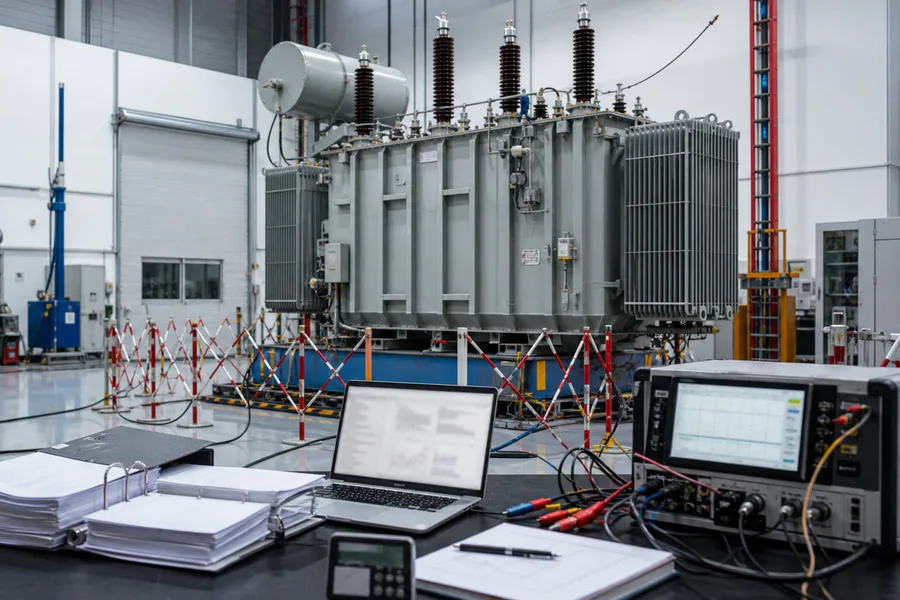

Published portfolio for applicable 10kV and 35kV distribution transformers and compact substations, including IEC, UL, TUV, CE, KEMA, GOST, and CSA files.
UL/cUL · CE/TUV · KEMA · GOST · CSA/IECView clear preview →
Test scope and acceptance basis
IEC-based transformer engineering and testing support, with the applicable standard parts, editions, project deviations, ratings, tolerances, and records defined for the ordered equipment.
Writing 'IEC standard' in an RFQ is not enough. The available supplier portfolio includes IEC/EN-oriented transformer files, KEMA-tested references, routine/type/special test records, and product-family evidence for distribution transformers, dry-type transformers, oil-immersed transformers, compact substations, and high-voltage power transformers. The relevant standard number and part, edition, local adoption, purchaser specification, special service conditions, guaranteed values, tests, tolerances, and document language must be confirmed before design and quotation are final.
Guaranteed values, tolerances, routine/type/special tests, witness, report format, deviations, and approval authority.
Products Supported by IEC Transformer Standards
The test scope and quality files must match the actual product, rated data, applicable standard, and confirmed order specification.
How the work is controlled
Identify the exact IEC product, test, installation, safety, accessory, and system standards relevant to the equipment.
Resolve conflicts among law, local grid code, purchaser specification, IEC edition, drawings, and factory standards.
Carry service conditions, ratings, insulation, temperature rise, losses, impedance, accessories, and tolerances into approved data.
Define routine, type, special, witness, and report requirements with the applicable clauses and acceptance basis.
Project inputs and acceptance basis
| Equipment category | Oil immersed, dry type, distribution or power transformer, reactor, substation, switchgear, accessories, and package boundary. |
|---|---|
| Standard identity | Full standard number, part, edition, amendments, local adoption, language, and purchaser supplements. |
| Service and ratings | Normal or special service conditions, voltage, insulation, frequency, capacity, cooling, losses, impedance, and accessories. |
| Acceptance | Guaranteed values, tolerances, routine/type/special tests, witness, report format, deviations, and approval authority. |
Available project records
Technical questions: IEC Transformer Standards
Does IEC Transformer Standards apply to every transformer?
Applicability depends on product type, rating, applicable standard, and the order specification. Routine tests normally apply to each unit; type or special tests are confirmed by project.
What is the acceptance basis for IEC Transformer Standards?
Acceptance should use the approved data sheet, applicable standard and edition, guaranteed values, tolerances, agreed deviations, procedure, and order requirements.
What should be confirmed before the work starts?
Oil immersed, dry type, distribution or power transformer, reactor, substation, switchgear, accessories, and package boundary.
What test or quality records can be produced?
Applicable-standard register, Project deviation and hierarchy record, IEC-aligned approved data sheet, Drawing and nameplate review, Clause-linked test plan where required, IEC-basis test and acceptance records
Discuss your transformer project
Send the available specification, drawing, single-line diagram, test requirement, quantity, destination, and target schedule. We will confirm the applicable equipment and document scope.
